# Floating-point as fractions

### Like fixed-point, floating-point is a format which stores rational numbers as fractions.

*This is part 6 of the onboarding floating point series. This series is intended to be used for onboarding of programmers new to the team to review a basic understanding of fixed-point and floating-point number formats, or for programmers who would like to remove some of the mystery from formats they may use everyday.*

We introduced the **s10e5 floating-point **format in floating-point as compression. Now let’s look at the same format from a different perspective.

```
TERMS
-----------------------------------------------------------------------------
| sign | x15 | m |
|-------|---------------------|---------------------------------------------|
| 1 bit | 5 bits | 10 bits |
-----------------------------------------------------------------------------
| sign | 1 bit value exactly as stored (1=negative, 0=positive) |
| x15 | 5 bit value exactly as stored as offset-15 |
| mantissa | 10 bit value exactly as stored as unsigned integer |
| m | mantissa |
| x | exponent as signed integer |
| s | sign as signed integer (-1=negative, 1=positive) |
| magnitude | unsigned value as f(x15,m) |
```

**Power-of-two Exponent**

The exponent signifies the log2 or power-of-two of the value. Some fractional value (F) is then added to that.

**Power-of-Two Intervals**

Since we’re working in powers of two, the distance between some exponent x and the next (x+1), is x. The fractional value (F) is some part (f) of that distance.

**Mantissa as Fraction of Interval**

The mantissa, occupying 10 bits, is interpreted as with fixed-point.

**Special Case Zero**

If the exponent in offset-15 is zero, result is a fraction of 1/2^-14

**Apply Sign**

Apply the sign to create the final result.

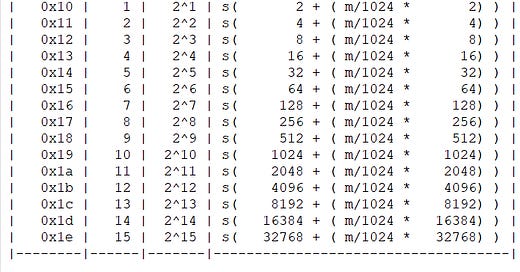

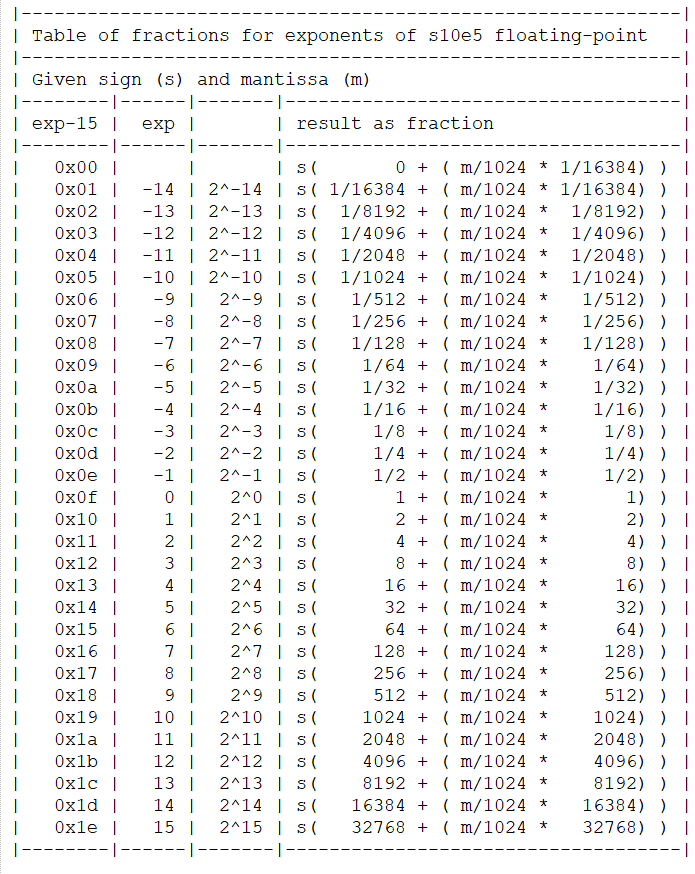

Therefore, we can define s10e5 floating point as the fraction:

Except where exp-15 is zero:

**EXERCISE 6-1**: Create a table of fractions for the exponents of a s23e8 floating point format. Assume sign is top bit, exponent is stored as offset-127, and mantissa is unsigned.

**Log-Linear Fractions**

As described above, in a floating point format, the range is divided into power-of-two (logarithmic) segments. However, each segment is *linearly* divided by the resolution of the mantissa.

**EXERCISE 6-2**: The s10e5 floating-point format described here is in sign-magnitude form. Create a version of the format that uses two's-complement instead of sign-magnitude and functions which convert from one to the other. Note any differences in values which can be represented.

**REFERENCE:** Check out this implementation of s23e8 floating-point [6502.org] for the 6502 by Roy Rankin and Steve Wozniak.

## Next: Part 7

Floating-point common names - Some floating-point formats have standard names (float, double, half)
